A25G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

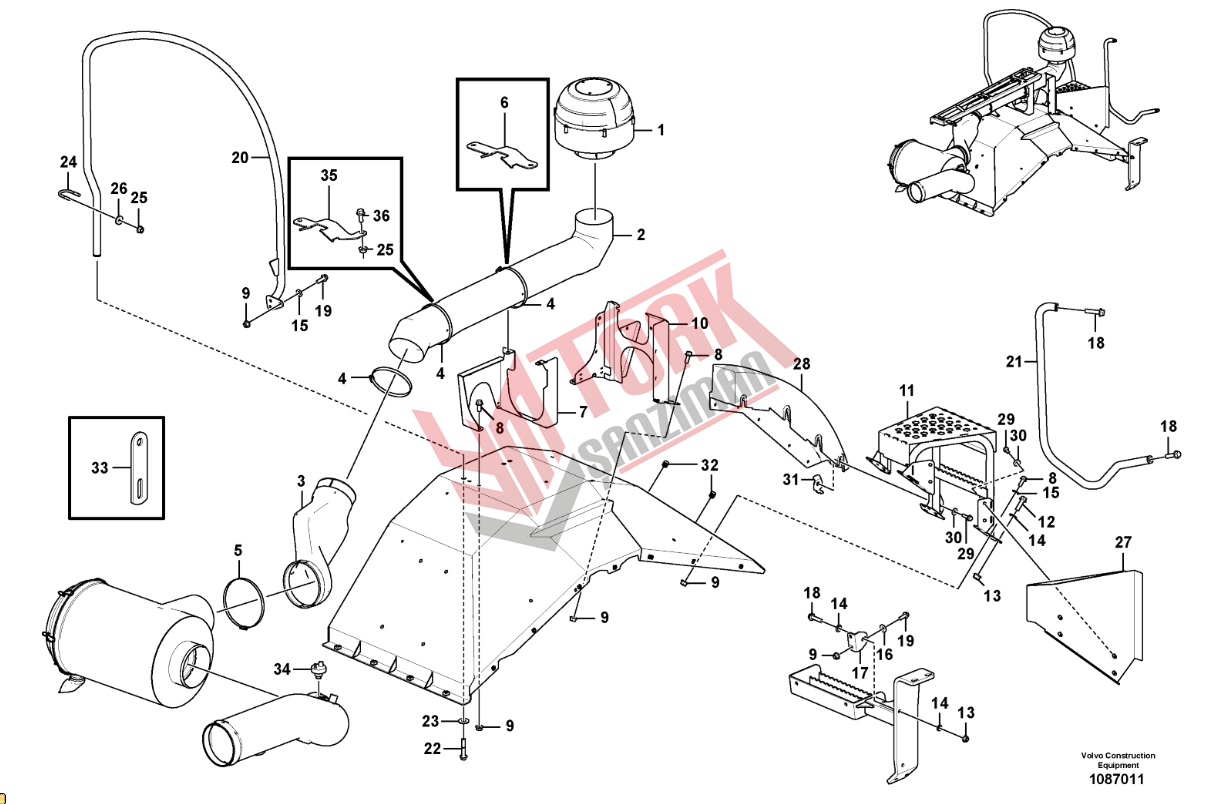

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11715352 |
Air cleaner | 1 |
| 2 | 16871638 |
Air duct | 1 |
| 3 | 16847324 |
Air duct | 1 |
| 4 | 943485 |
Hose clamp | 3 |
| 5 | 16826601 |
Hose clamp | 1 |
| 6 | 16898326 |
Bracket | 1 |
| 7 | 16848208 |
Bracket | 1 |
| 8 | 946329 |
Flange screw | 14 |
| 9 | 13971098 |
Flange nut | 18 |
| 10 | 16860035 |
Bracket | 1 |
| 11 | 16874595 |
Foot step | 1 |
| 12 | 13965192 |
Screw | 2 |
| 13 | 971099 |
Flange lock nut | 3 |
| 14 | 13955897 |
Washer | 4 |
| 15 | 976945 |
Washer | 8 |
| 16 | 13960143 |
Washer | 2 |
| 17 | 15173619 |
Bracket | 1 |
| 18 | 13965193 |
Screw | 3 |
| 19 | 946472 |
Flange screw | 4 |
| 20 | 16882125 |
Hand rail | 1 |
| 21 | 16686312 |
Hand rail | 1 |
| 22 | 965195 |
Flange screw | 1 |
| 23 | 13960145 |
Washer | 1 |
| 24 | 4951483 |
Clamp | 1 |
| 25 | 948645 |
Flange lock nut | 3 |
| 26 | 11055612 |
Plain washer | 2 |
| 27 | 16858838 |
Heat shield | 1 |
| 28 | 15151019 |
Cover | 1 |
| 29 | 946671 |
Flange screw | 7 |
| 30 | 11117464 |
Plain washer | 7 |
| 31 | 15134702 |
Nut plate | 3 |
| 32 | 11193741 |
Plug | 3 |
| 33 | 13965537 |
Bracket | 1 |
| 34 | 20565673 |
Vacuum switch | 1 |
| 35 | 16898325 |
Bracket | |
| 36 | 13946173 |
Screw | 1 |
