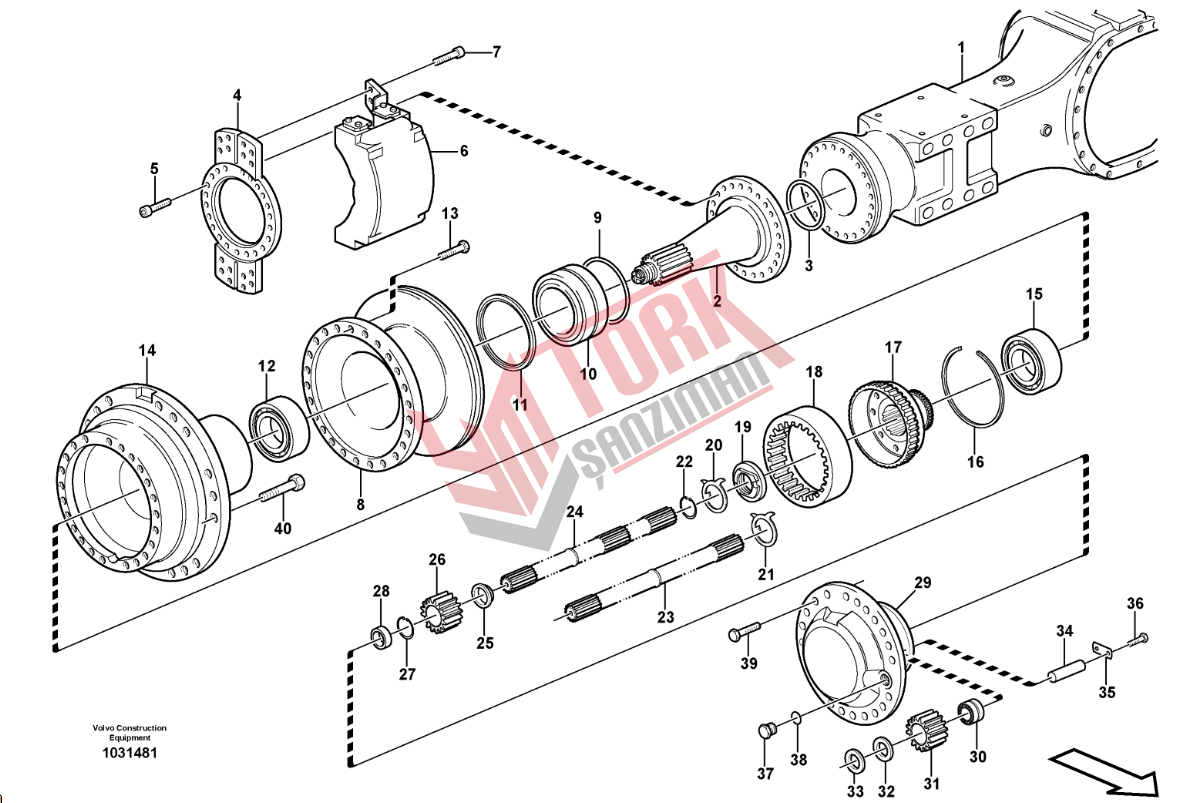

YM Güç Tork - 463/400 Hub reduction, axle 1 load unit AH71E PROD NO 23942, 4X4 - A25E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	23942	Planet shaft	1
2	11035871	•Spindle	2
3	13948511	•O-ring	2
4	11102956	•Brake anchorage	2
5	966841	•Hex. socket screw	38
6		•Brake	4
7	949566	•Hex. socket screw	32
8	11102398	•Brake disc	2
9	13960251	•O-ring	2
10	11103114	•Spacer ring	2
11	11034214	•Sealing ring	2
12	11035753	•Roller bearing	2
13	967691	•Hex. socket screw	40
14	11103111	•Hub	2
15	184007	•Roller bearing	2
16	4717268	•Snap ring	2
17	4717259	•Gear ring holder	2
18	4717261	•Gear ring	2
19	11168099	•Nut	2
20	11168097	•Lock ring	2
21	914490	•Snap ring	2
22	914490	•Snap ring	2
23	11102558	•Drive shaft	1
24	11102559	•Drive shaft	1
25	4717269	•Wear washer	2
26	11102300	•Sun gear	2
27	7044381	•Snap ring	2
28	11102910	•Wear ring	2
29	11103195	•Planet carrier	2
30	4786810	•Needle bearing	6
31	11102299	•Planet gear	6
32	11035881	•Thrust washer	12
33	11035882	•Thrust washer	12
34	4717385	•Planet shaft	6
35	4717618	•Striker plate	6
36	946471	•Flange screw	12
37	11034156	•Plug	2
38	958228	•O-ring	2
39	980238	•Hex. socket screw	78
40	11102584	•Wheel stud	36
