A25E
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

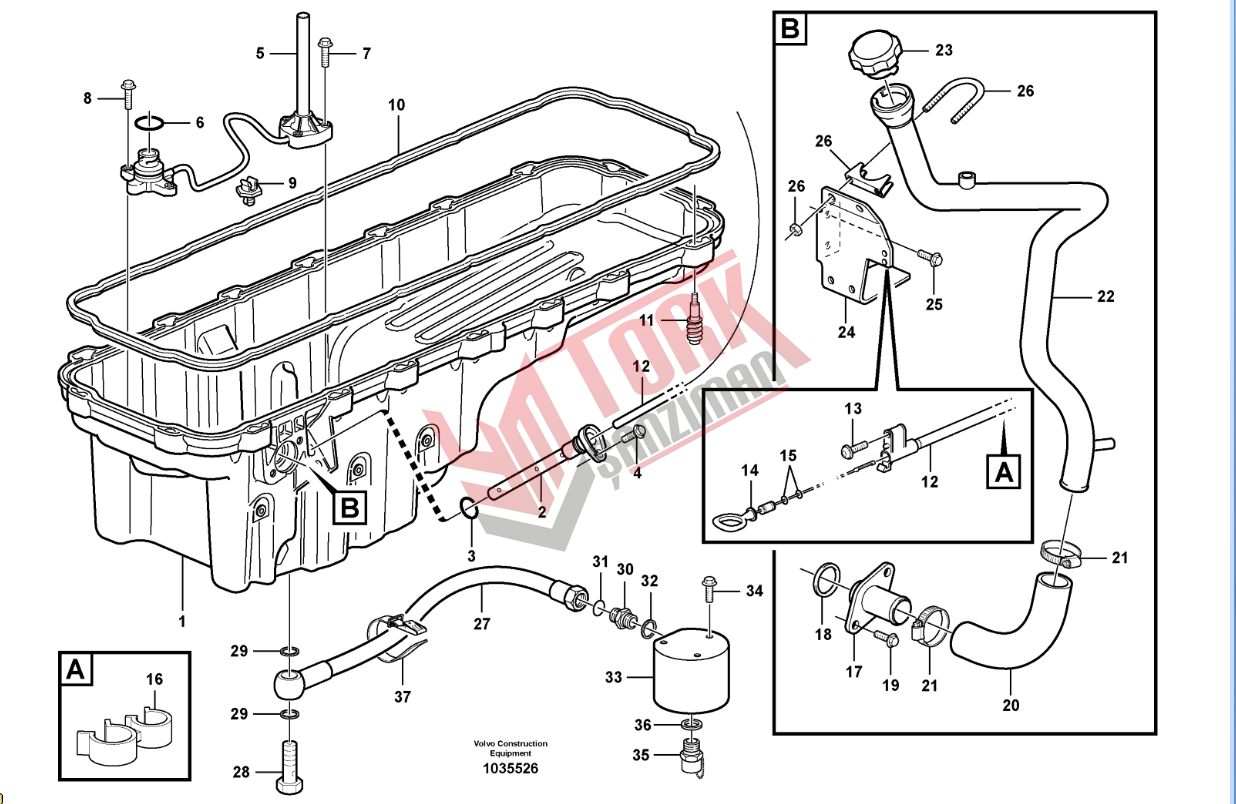

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil Pan | 1 |
| 2 | 21523327 (20724256) |
Pipe | 1 |
| 3 | 13949656 |
O-ring | 1 |
| 4 | 946440 |
Flange screw | 1 |
| 5 | 21042447 |
Oil level sensor | 1 |
| 6 | 990719 |
•O-ring | 1 |
| 7 | 13948356 |
Flange screw | 3 |
| 8 | 946934 |
Flange screw | 2 |
| 9 | 20700754 |
Retainer | 2 |
| 10 | 20812484 |
Sealing strip | 1 |
| 11 | 20739547 |
Flange screw | 18 |
| 12 | 11129456 |
Pipe | 1 |
| 13 | 975371 |
Six point socket screw | 1 |
| 14 | 11129454 |
Oil dipstick | 1 |
| 15 | 949187 |
•O-ring | 1 |
| 16 | 3121512 |
Retaining clip | 1 |
| 17 | 3837033 |
Pipe | 1 |
| 18 | 20555696 |
Sealing ring | 1 |
| 19 | 947107 |
Flange screw | 2 |
| 20 | 11128054 |
Hose | 1 |
| 21 | 943477 |
Hose clamp | 2 |
| 22 | 11129599 |
Oil filler pipe | 1 |
| 23 | 20807510 |
Oil filler cap | 1 |
| 24 | 11129443 |
Bracket | 1 |
| 25 | 946440 |
Flange screw | 2 |
| 26 | 968129 |
Clamp | 1 |
| 27 | 11194708 |
Hose assembly | 1 |
| 28 | 990694 |
Hollow screw | 1 |
| 29 | 984043 |
Gasket | 2 |
| 30 | 13933906 |
Nipple | 1 |
| 31 | 990740 |
•O-ring | 1 |
| 32 | 14211859 |
•Sealing ring | 1 |
| 33 | 11115336 |
Block | 1 |
| 34 | 13946173 |
Screw | 3 |
| 35 | 11054692 |
Valve | 1 |
| 36 | 949329 |
Gasket | 1 |
| 37 | 11104606 |
Retaining strap | 1 |
