A25D 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

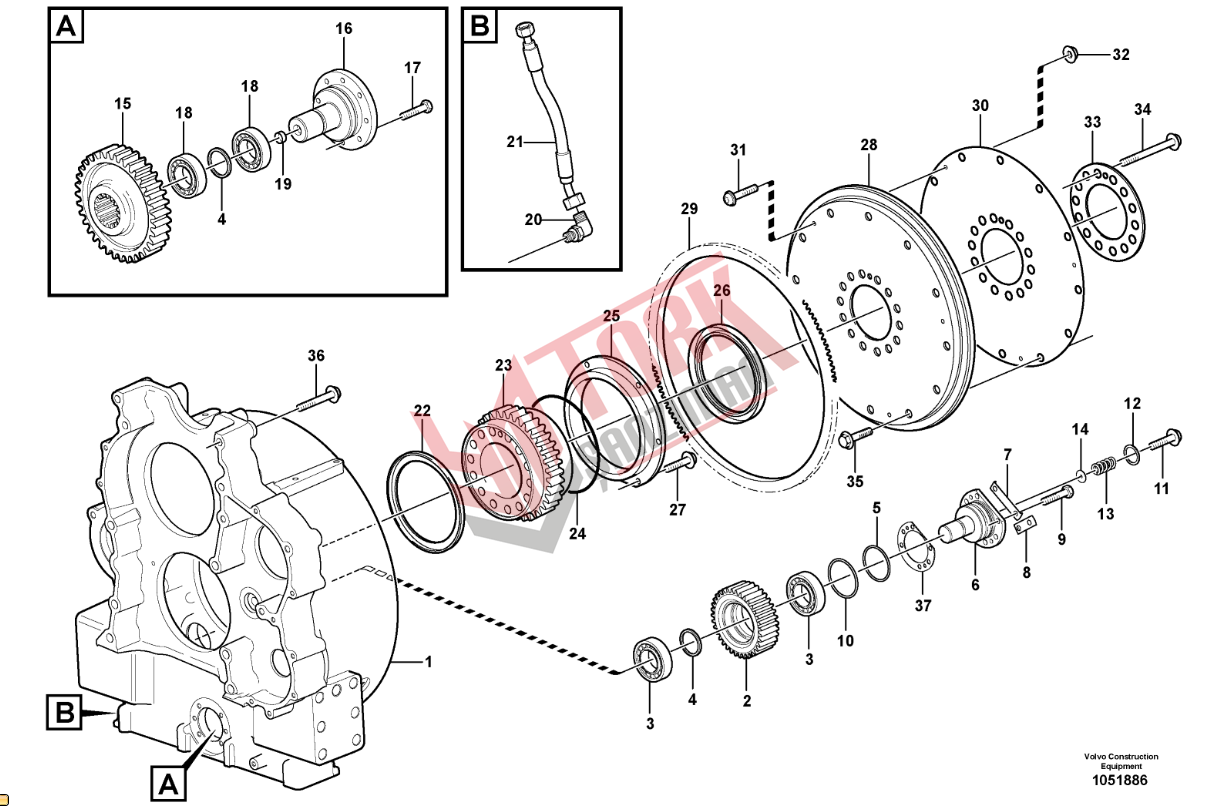

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11127947 |
Power take-off | 1 | |
| 11129451 (11129247) |
Transmission | ||
| 11129451 |
Transmission | ||
| 1 | 11129295 |
•Gearbox housing | 1 |
| |
•Flywheel Hsg | ||
| |
•Flywheel Hsg | ||
| 2 | 11127950 |
•Gear | 1 |
| 3 | 183839 |
•Roller bearing | 2 |
| 4 | 4771366 |
•Spacer ring | REQ |
| 4771367 |
•Spacer ring | REQ | |
| 4771368 |
•Spacer ring | REQ | |
| 4771369 |
•Spacer ring | REQ | |
| 4771370 |
•Spacer ring | REQ | |
| 4771371 |
•Spacer ring | REQ | |
| 4771372 |
•Spacer ring | REQ | |
| 4771373 |
•Spacer ring | REQ | |
| 4771374 |
•Spacer ring | REQ | |
| 4771375 |
•Spacer ring | REQ | |
| 4771376 |
•Spacer ring | REQ | |
| 4771377 |
•Spacer ring | REQ | |
| 4771378 |
•Spacer ring | REQ | |
| 4771379 |
•Spacer ring | REQ | |
| 4771380 |
•Spacer ring | REQ | |
| 4771381 |
•Spacer ring | REQ | |
| 4771382 |
•Spacer ring | REQ | |
| 5 | 977015 |
•O-ring | 1 |
| 6 | 11127951 |
•Shaft | 1 |
| 15142476 (11128246) |
•Axle shaft | ||
| 15142476 |
•Axle shaft | ||
| 7 | 941878 |
•Tab washer | 1 |
| 8 | 7015025 |
•Tab washer | 2 |
| 9 | 13955294 |
•Screw | 6 |
| 9 | 955297 |
Hexagon screw | |
| 10 | 977016 (925254) |
•O-ring | 1 |
| 977015 |
•O-ring | ||
| 11 | 13946173 |
•Screw | 1 |
| 12 | 13947281 |
•Gasket | 1 |
| 13 | 703751 |
•Spring | 1 |
| 14 | 11031684 |
•Restricting washer | 1 |
| 15 | 11127857 |
•Gear | 1 |
| 16 | 11127858 |
•Shaft | 1 |
| 17 | 13955294 |
•Screw | 1 |
| 18 | 183839 |
•Roller bearing | 2 |
| 19 | 4837098 |
•Reduction | 1 |
| 20 | 935066 |
•Elbow nipple | 1 |
| 990736 |
••O-ring | 1 | |
| 21 | 11127975 |
Hose | 1 |
| 22 | 8148259 |
Crankshaft seal | 1 |
| 23 | 11128097 |
Gear | 1 |
| 24 | 990249 |
O-ring | 1 |
| 25 | 11128088 |
Cover | 1 |
| 26 | 20441697 |
•Seal | 1 |
| 27 | 13946544 |
Screw | 6 |
| 28 | 20758545 (20539747) |
Flywheel | 1 |
| 20758545 |
Flywheel | ||
| 29 | 20711957 (8193939) |
•Ring gear | 1 |
| 20711957 |
•Ring gear | ||
| 30 | 20539750 |
•Plate | 1 |
| 31 | 969422 |
•Six point socket screw | 3 |
| 32 | 13949278 |
•Flange lock nut | 3 |
| 33 | 20464295 |
Thrust Plate | 1 |
| 34 | 11128176 |
Screw | 12 |
| 35 | 946502 |
Flange screw | 12 |
| 36 | 994465 (984152) |
Flange screw | 7 |
| 13946173 |
Screw | 6 | |
| 37 | 15107285 |
Shim | REQ |
| 37 | 15107286 |
Shim | REQ |
| 37 | 15107290 |
Shim | REQ |
