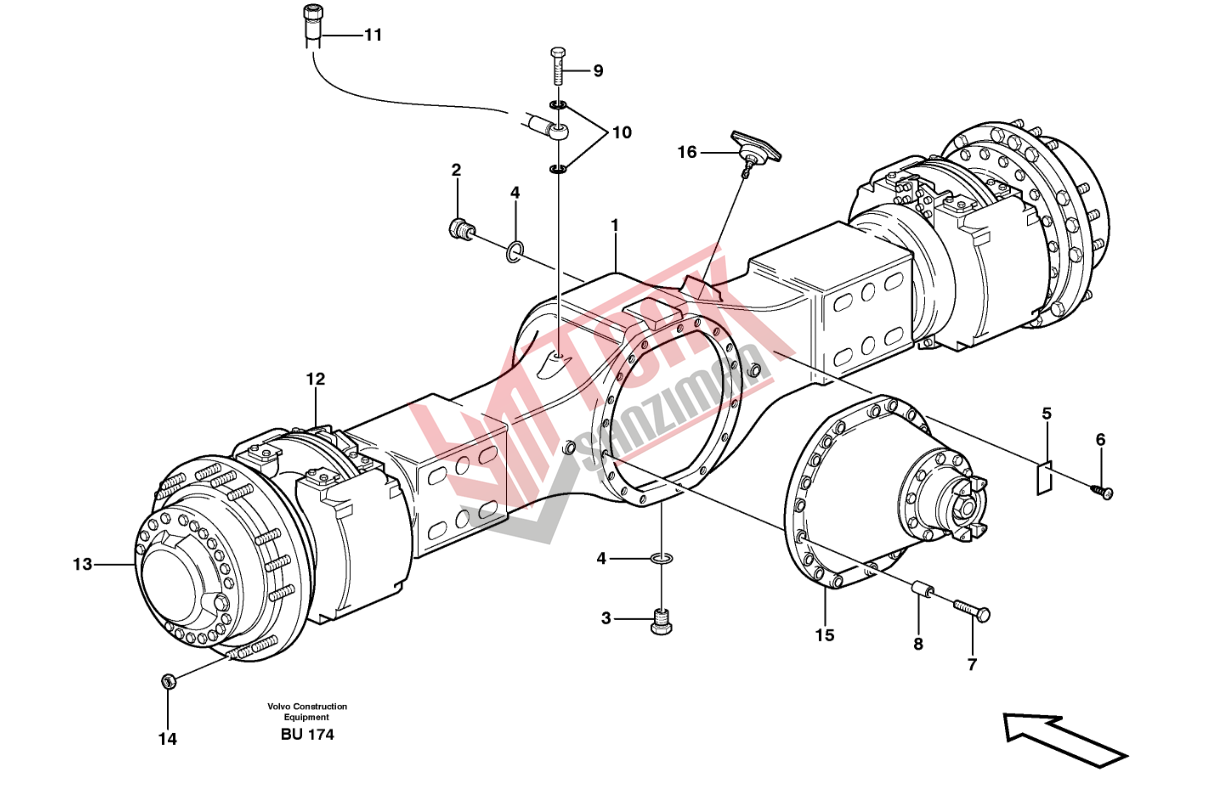

+90 552 671 32 12FRONT AXLE; REAR AXLE > 461/150 Planetary axle, motor unit AH64D PROD NO 23909, 4X4
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23909 |
Planetary Axle | 1 | |
| 1 | 11103076 |
•Axle casing | 1 |
| 2 | 11034156 |
•Plug | 1 |
| 3 | 11102187 |
•Magnetic plug | 1 |
| 4 | 958228 |
•O-ring | 2 |
| 5 | |
•Sign | 1 |
| 6 | 950891 |
•Drive screw | 2 |
| 7 | 949544 |
•Hex. socket screw | 18 |
| 8 | 11102959 |
•Spacer sleeve | 4 |
| 9 | 190713 (7190713) |
Hollow screw | 1 |
| 10 | 13947622 (7011996) |
Plane gasket | 2 |
| 11 | 11121142 |
Hose | 1 |
| 943470 |
Hose clamp | 1 | |
| 12 | |
Brake | 4 |
| 13 | |
Planetary gear | 2 |
| 14 | 947972 |
Wheel nut | 24 |
| 15 | |
Final Drive | 1 |
| 16 | |
Differential lock | 1 |
