A25D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım

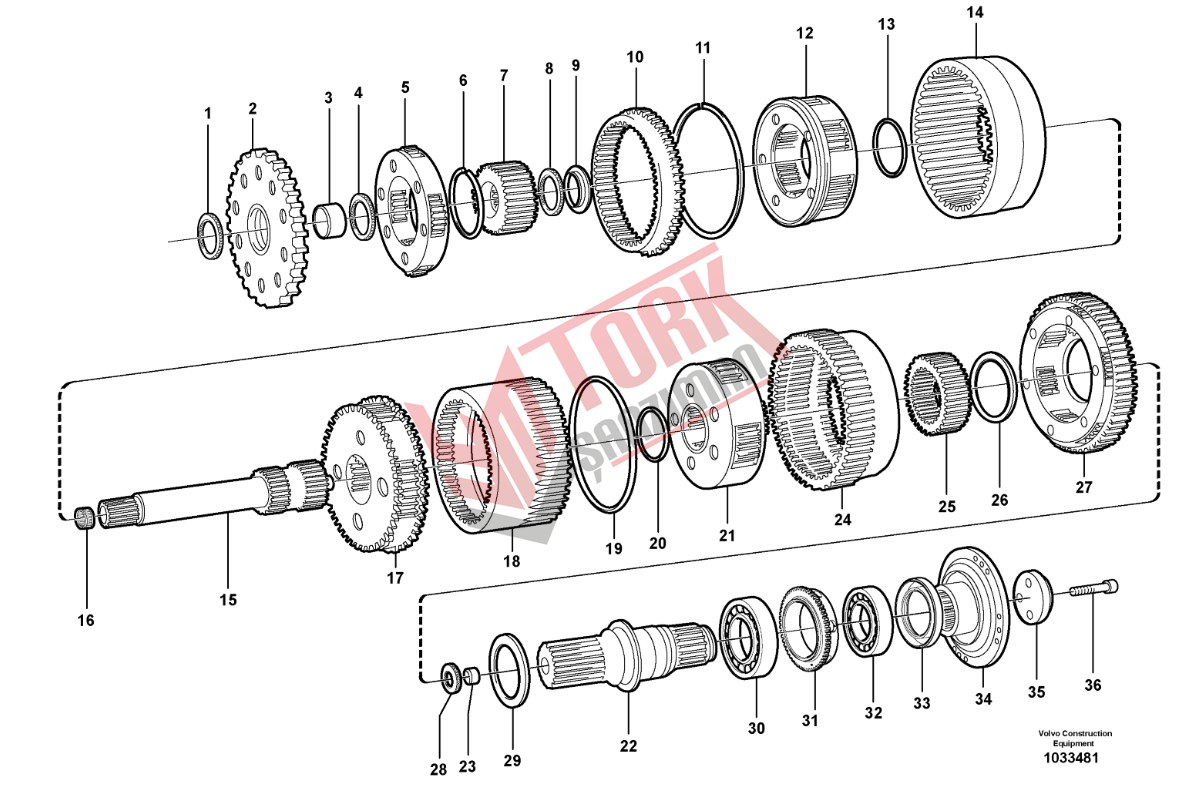

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/320 Planetary gears and shafts 22688, S/N 16137 - SWE, 72376 - BRA
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11418288 |
Needle bearing | 1 |
| 2 | 15132551 |
Sun gear | 1 |
| 3 | 11418137 |
•Bushing | 1 |
| 4 | 1650419 |
•Needle bearing | 1 |
| 5 | |
Planet carrier | 1 |
| 6 | 1650348 |
Snap ring | 1 |
| 6 | 15157846 |
Retaining ring | 1 |
| 7 | 11418138 |
Sun gear | 1 |
| 7 | 15156699 |
Sun gear | 1 |
| 8 | 1650419 |
Needle bearing | 1 |
| 9 | 1650401 |
Thrust washer | 1 |
| 10 | 11037939 |
Ring gear | 1 |
| 11 | 1650350 |
Snap ring | 1 |
| 12 | |
Planet carrier | 1 |
| 13 | 15112696 (11036557) |
Thrust washer | 1 |
| 14 | 11418038 |
Ring gear | 1 |
| 15 | 11418075 |
Main shaft | 1 |
| 16 | 181282 |
•Ndl Roller Bshg | 1 |
| 17 | |
Planet carrier | 1 |
| 18 | 11418078 |
Ring gear | 1 |
| 19 | 1650353 |
Snap ring | 1 |
| 20 | 15046263 (11038779) |
Thrust washer | REQ |
| 15046264 (11038780) |
Thrust washer | REQ | |
| 15112696 (11036557) |
Thrust washer | REQ | |
| 15046266 (15112698) |
Thrust washer | REQ | |
| 15046268 (11036559) |
Thrust washer | REQ | |
| 15046270 (11036560) |
Thrust washer | REQ | |
| 15046265 (11036561) |
Thrust washer | REQ | |
| 15046267 (11036562) |
Thrust washer | REQ | |
| 15112704 (11036563) |
Thrust washer | REQ | |
| 15112707 (11145594) |
Thrust washer | REQ | |
| 21 | |
Planet carrier | 1 |
| 22 | 11419201 |
Shaft | 1 |
| 23 | 17243008 (1650376) |
•Bushing | 1 |
| 24 | 11418037 |
Ring gear | 1 |
| 25 | 11037347 |
Sun gear | 1 |
| 26 | 15046275 (1650394) |
Thrust washer | 1 |
| 27 | |
Planet carrier | 1 |
| 28 | 1650412 |
Needle bearing | 1 |
| 29 | 15046275 (1650394) |
Thrust washer | 1 |
| 30 | 15193803 |
Ball bearing | 1 |
| 31 | 15143915 (11145864) |
Sensor wheel | 1 |
| 32 | 15193808 (7019463) |
Ball bearing | 1 |
| 33 | 11145832 |
Sealing ring | 1 |
| 34 | 17241455 (15033840) |
Companion flange | 1 |
| 35 | 11145846 |
Washer | 1 |
| 36 | 959264 |
Hex. socket screw | 3 |
