A25D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

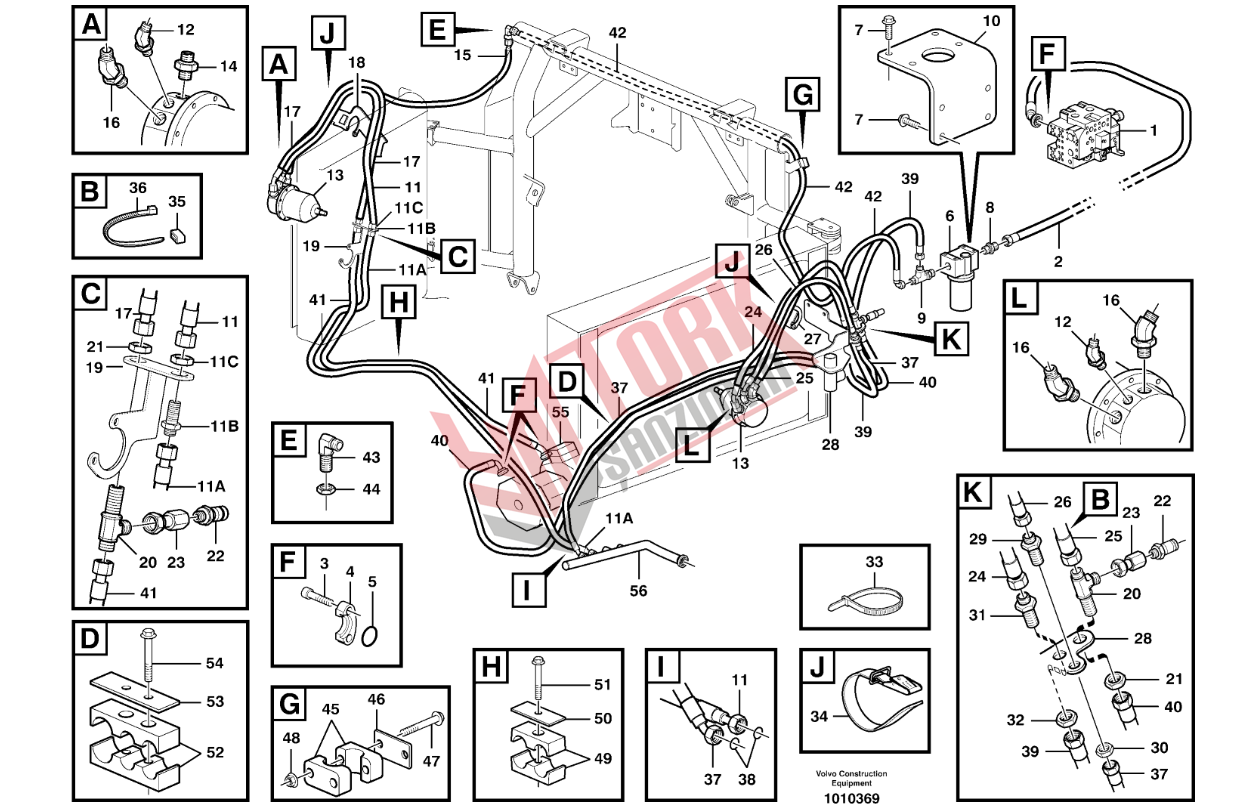

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Valve block | |
| 2 | 11193429 |
Hose assembly | 1 |
| 3 | 959239 |
Hex. socket screw | 12 |
| 4 | 11015454 |
Flange half | 6 |
| 5 | 990742 (942985) |
O-ring | 3 |
| 6 | |
Filter | 1 |
| 7 | 13946544 |
Screw | 8 |
| 8 | 13933862 |
Nipple | 1 |
| 990740 (981289) |
•O-ring | 1 | |
| 993323 (932042) |
•O-ring | 1 | |
| 9 | 936575 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 2 | |
| 10 | |
Plate | 1 |
| 11 | 936666 |
Hose assembly | 1 |
| 936050 |
Hose assembly | 1 | |
| 11A | 935790 |
Hose assembly | 1 |
| 11B | 935425 |
Nipple | 1 |
| 990737 (4880492) |
•O-ring | 2 | |
| 11C | 935429 |
Lock nut | 1 |
| 12 | 936352 |
Nipple | 2 |
| 990737 (4880492) |
•O-ring | 2 | |
| 13 | |
Hydraulic motor | 2 |
| 14 | 13933853 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 1 | |
| 14211863 |
•Sealing ring | 1 | |
| 15 | 935642 |
Hose assembly | 1 |
| 16 | 13933903 |
Elbow nipple | 3 |
| 990738 (4880493) |
•O-ring | 3 | |
| 967750 |
•O-ring | 3 | |
| 17 | 935512 |
Hose assembly | 1 |
| 18 | 11192343 |
Bracket | 1 |
| 19 | 11192644 |
Bracket | 1 |
| 20 | 935816 |
T-nipple | 2 |
| 990738 (4880493) |
•O-ring | 2 | |
| 21 | 13933867 |
Lock nut | 2 |
| 22 | 935026 |
Test nipple | 2 |
| 23 | 936439 |
Testing nipple | 2 |
| 955990 |
•O-ring | 2 | |
| 24 | 935511 |
Hose assembly | 1 |
| 25 | 935684 |
Hose assembly | 1 |
| 26 | 936492 |
Hose assembly | 1 |
| 27 | 11192344 |
Bracket | 1 |
| 28 | 11192199 |
Bracket | 1 |
| 29 | 935425 |
Nipple | 1 |
| 990737 (4880492) |
•O-ring | 2 | |
| 30 | 935429 |
Lock nut | 1 |
| 31 | 13933922 |
Nipple | 1 |
| 990738 (4880493) |
•O-ring | 2 | |
| 32 | 13933867 |
Lock nut | 1 |
| 33 | 4881440 |
Cable tie | REQ |
| 34 | 11104606 |
Retaining strap | REQ |
| 35 | 11120675 |
Marking sleeve | 1 |
| 36 | 4821292 |
Cable tie | 1 |
| 37 | 936093 |
Hose assembly | 1 |
| 38 | 990737 (4880492) |
O-ring | 2 |
| 39 | 936574 |
Hose assembly | 1 |
| 40 | 935793 |
Hose assembly | 1 |
| 41 | 936530 |
Hose assembly | 1 |
| 42 | 11191746 |
Hose assembly | 1 |
| 43 | 13933866 |
Elbow nipple | 1 |
| 990738 (4880493) |
•O-ring | 2 | |
| 44 | 13933867 |
Lock nut | 1 |
| 45 | 11114080 |
Clamp | 2 |
| 46 | 11003048 |
Cover plate | 1 |
| 47 | 13965177 |
Screw | 2 |
| 48 | 13949278 |
Flange lock nut | 2 |
| 49 | 11191958 |
Clamp | 1 |
| 50 | 11192285 |
Plate | 1 |
| 51 | 13948217 |
Screw | 1 |
| 52 | 11192342 |
Clamp | 2 |
| 53 | 11192284 |
Plate | 1 |
| 54 | 13965179 |
Screw | 2 |
| 55 | |
Hydraulic Pump | |
| 56 | |
Return pipe | - |
