A25D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

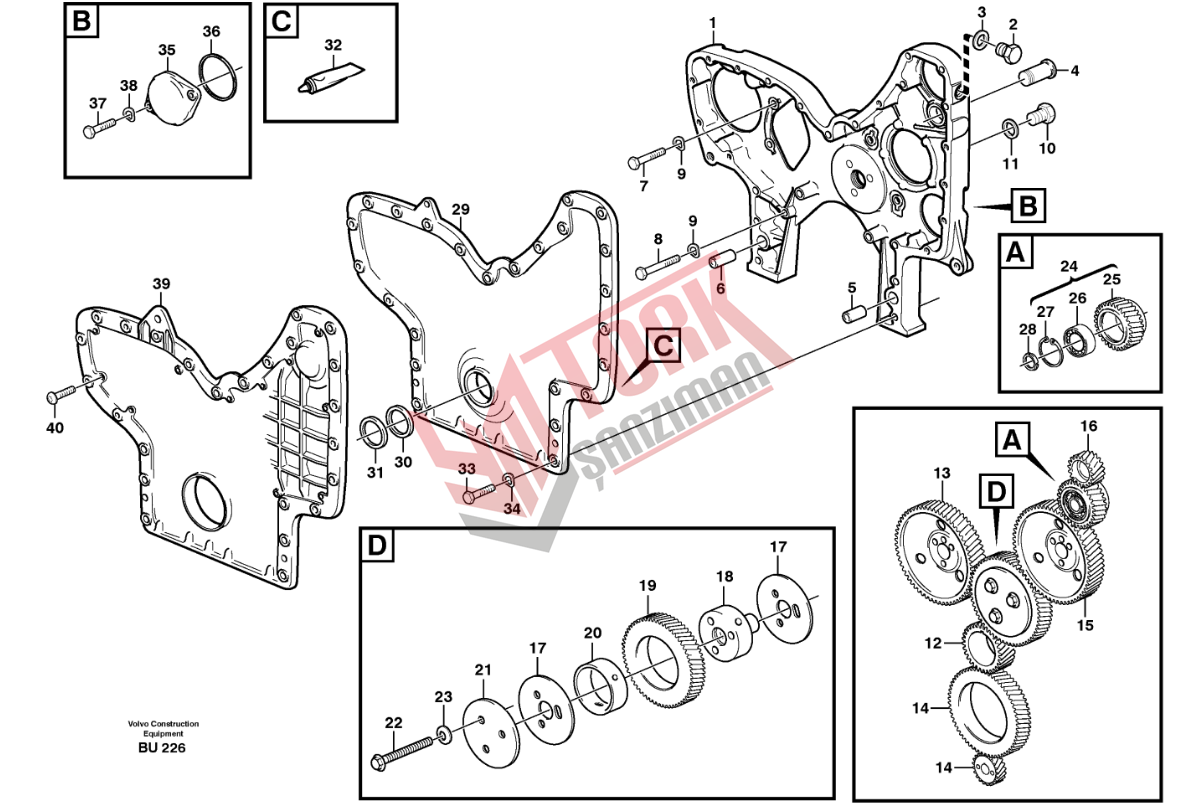

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 8194639 |
Timing gear casing | 1 |
| 2 | 13960633 |
•Plug | 2 |
| 3 | 13947625 |
•Plane gasket | 2 |
| 4 | 8194626 |
•Pin | 1 |
| 5 | 13941510 |
•Pin | 1 |
| 6 | 13941511 |
•Pin | 1 |
| 7 | 102045 |
Hexagon screw | 4 |
| 8 | 955537 |
Hexagon screw | 1 |
| 9 | 13942336 |
Spring washer | 5 |
| 10 | 7192114 |
Plug | 1 |
| 11 | 13947627 |
Plane gasket | 1 |
| 12 | |
Crankshaft gear | 1 |
| 13 | |
Camshaft gear | 1 |
| 14 | |
Oilpump gear | 2 |
| 15 | |
Gear inject.pump | 1 |
| 16 | |
Water pump ger | 1 |
| 17 | 478951 |
Thrust washer | 2 |
| 18 | 8192636 |
Idler gear | 1 |
| 19 | 479653 |
Idler gear | 1 |
| 20 | 479687 |
•Bushing | 1 |
| 21 | 478954 |
Bearing shield | 1 |
| 22 | 468738 |
Screw | 3 |
| 23 | 942180 |
Disc spring | 3 |
| 24 | 478959 |
Idler gear | 1 |
| 25 | 478773 |
•Idler gear | 1 |
| 26 | 478783 |
•Bearing | 1 |
| 27 | 914532 |
•Retaining ring | 1 |
| 28 | 478955 |
Round nut | 1 |
| 29 | 11031091 |
Cover | 1 |
| 30 | 941666 |
•Sealing ring | 1 |
| 31 | 424983 |
•Sealing ring | 1 |
| 32 | 1161277 |
Sealant | REQ |
| 11713514 (1161231) |
Sealant | REQ | |
| 33 | 13940162 |
Screw | 9 |
| 955540 |
Hexagon screw | 2 | |
| 955542 |
Hexagon screw | 6 | |
| 955544 |
Hexagon screw | 4 | |
| 955536 |
Hexagon screw | 2 | |
| 946329 |
Flange screw | 1 | |
| 820506 |
Spacer sleeve | 3 | |
| 34 | 13942336 |
Spring washer | 21 |
| 35 | 468093 |
Cover | 1 |
| 36 | 468094 |
Sealing ring | 1 |
| 37 | 955535 |
Hexagon screw | 2 |
| 38 | 13942336 |
Spring washer | 2 |
| 39 | 479652 |
Noise shield | 1 |
| 40 | 13972542 |
•Six point socket screw | 16 |
