A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

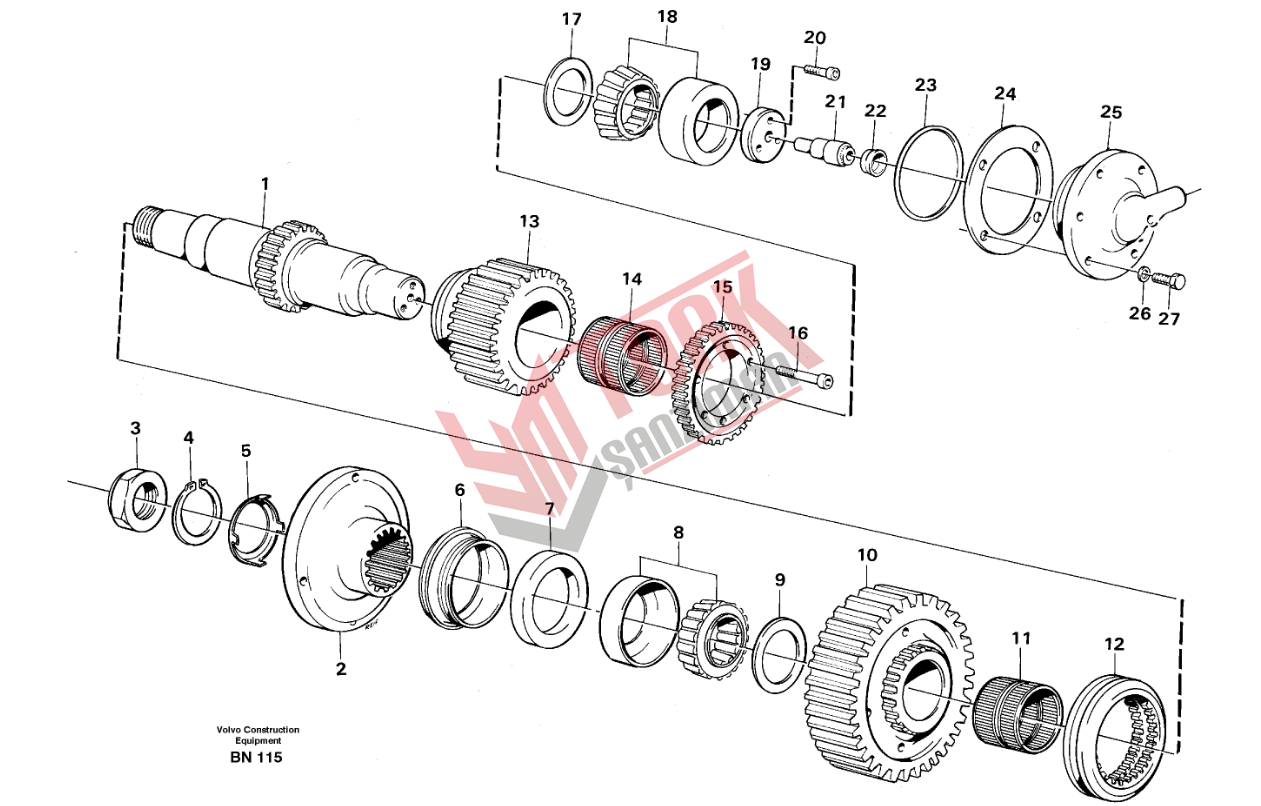

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 4871381 |
Shaft | 1 |
| 2 | 11102715 (1523543) |
Companion flange | 1 |
| 382015 |
•Dust cover | 1 | |
| 3 | 4716226 |
Nut | 1 |
| 4 | 914480 |
Snap ring | 1 |
| 5 | 382779 |
Lock washer | REQ |
| 383992 |
Lock washer | REQ | |
| 6 | 943142 |
Sealing ring | 1 |
| 7 | 4880627 |
Sealing ring | 1 |
| 8 | 183837 |
Roller bearing | 1 |
| 9 | 4871402 |
Spacer washer | 1 |
| 10 | 11036538 |
Gear | 1 |
| 11 | 1527316 (4881060) |
Needle bearing | 1 |
| 12 | 4871382 |
Engaging sleeve | 1 |
| 13 | 4871384 |
Gear | 1 |
| 14 | 1527316 (4881060) |
Needle bearing | 1 |
| 15 | 4871370 |
Gear | 1 |
| 16 | 13948400 |
Screw | 6 |
| 17 | 4871403 |
Spacer washer | 1 |
| 18 | 183373 |
Roller bearing | 1 |
| 19 | 4871066 |
Washer | 1 |
| 20 | 959241 |
Hex. socket screw | 3 |
| 21 | 4719266 |
Junction pipe | 1 |
| 22 | 4881059 |
Sealing ring | 1 |
| 23 | 13949647 |
O-ring | 1 |
| 24 | 11036818 |
Shim | REQ |
| 11036819 |
Shim | REQ | |
| 11036820 |
Shim | REQ | |
| 25 | 11036860 |
Cover | 1 |
| 26 | 941908 |
Spring washer | 6 |
| 27 | 13970948 (970948) |
Hexagon screw | 5 |
| 970952 (13970952) |
Hexagon screw | 1 |
