A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

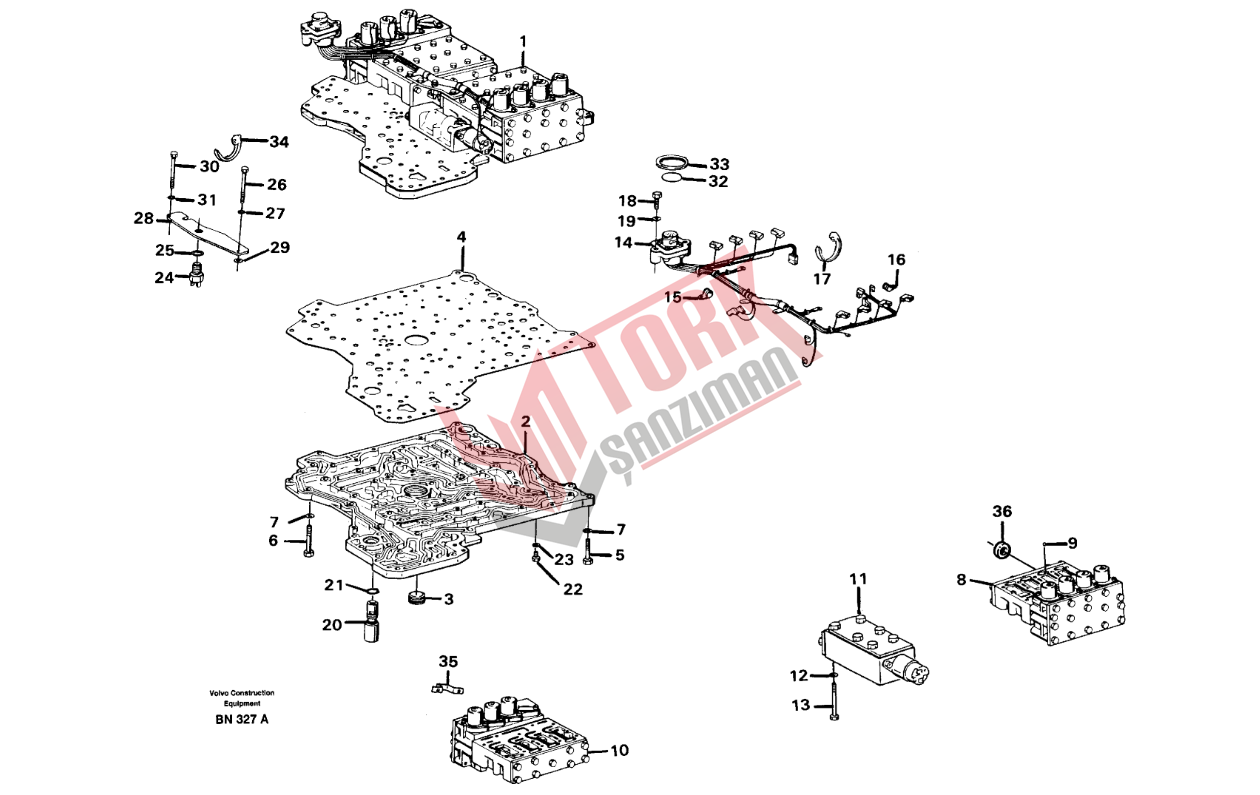

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Shift valve | 1 |
| 2 | 8551073 |
•Valve Plate | 1 |
| 3 | 11991226 |
•Plug | 1 |
| 4 | 11701318 |
•Plate | 1 |
| 5 | 955299 |
•Hexagon screw | 30 |
| 6 | 940132 |
•Hexagon screw | 9 |
| 7 | 13955894 (955894) |
•Washer | 39 |
| 8 | |
•Valve block | 1 |
| 9 | 1663489 |
•Ball | 1 |
| 10 | |
•Valve block | 1 |
| 11 | |
•Valve | 1 |
| 12 | 955892 |
•Plain washer | 6 |
| 13 | 955277 |
•Hexagon screw | 6 |
| 14 | 11991237 |
•Cable harness | 1 |
| 11700020 |
••Gasket | 1 | |
| 15 | 18387 |
•Clamp | 2 |
| 16 | 18387 |
•Clamp | 1 |
| 17 | 11992080 |
•Clamp | 1 |
| 18 | 6637280 |
•Screw | 2 |
| 19 | 13955894 (955894) |
•Washer | 2 |
| 20 | 11991238 |
•Valve | 1 |
| 21 | 11991239 |
•Snap ring | 1 |
| 22 | 955299 |
•Hexagon screw | 9 |
| 23 | 13955894 (955894) |
•Washer | 9 |
| 24 | 1662040 |
•Induction sensor | 1 |
| 25 | |
•Shim | 1 |
| 1662039 |
••Adjusting washer | REQ | |
| 1662038 |
••Adjusting washer | REQ | |
| 1662037 |
••Adjusting washer | REQ | |
| 1662036 |
••Adjusting washer | REQ | |
| 1662035 |
••Adjusting washer | REQ | |
| 1662034 |
••Adjusting washer | REQ | |
| 1662033 |
••Adjusting washer | REQ | |
| 1662032 |
••Adjusting washer | REQ | |
| 1662030 |
••Adjusting washer | REQ | |
| 1662029 |
••Adjusting washer | REQ | |
| 1662028 |
••Adjusting washer | REQ | |
| 1662027 |
••Adjusting washer | REQ | |
| 26 | 955282 |
•Hexagon screw | 1 |
| 27 | 955892 |
•Plain washer | 15 |
| 28 | 11992084 |
•Lock Plate | 1 |
| 29 | 11991234 |
•Washer | 2 |
| 30 | 955282 |
•Hexagon screw | 1 |
| 31 | 955892 |
•Plain washer | 15 |
| 32 | 1663628 |
•Washer | 1 |
| 33 | 949659 |
•O-ring | 1 |
| 34 | 11992080 |
•Clamp | 2 |
| 35 | 11991236 |
•Link | 1 |
| 36 | 8551083 |
Magnet | 4 |
