A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

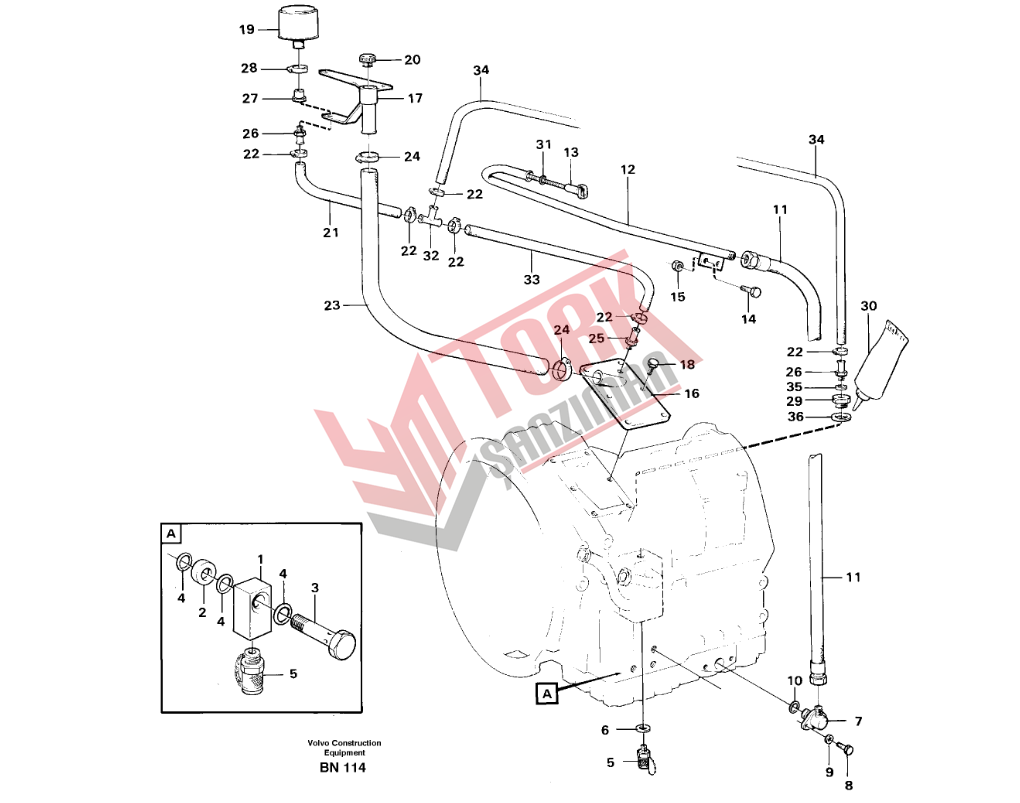

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11061349 |
Nipple | 4 |
| 2 | 11061348 |
Spacer | 4 |
| 3 | 11061347 |
Hollow screw | 4 |
| 4 | 944364 |
O-ring | 12 |
| 5 | 930032 |
Testing nipple | 5 |
| 931209 |
•O-ring | 5 | |
| 931216 |
•Back-up ring | 5 | |
| 6 | 13947621 |
Plane gasket | 1 |
| 7 | 4965394 |
Cover | 1 |
| 8 | 955297 |
Hexagon screw | 2 |
| 9 | 13960141 |
Washer | 4 |
| 10 | 13949721 |
O-ring | 1 |
| 11 | 4881725 |
Hose assembly | 1 |
| 12 | 4965566 |
Pipe | 1 |
| 13 | 11053716 (11053716) |
Dipstick | 1 |
| 14 | 940142 |
Hexagon screw | 2 |
| 15 | 13945408 (948645) |
Nut | 2 |
| 16 | 4965544 |
Cover | 1 |
| 17 | 4965611 |
Filler pipe | 1 |
| 18 | 970945 (13970945) |
Hexagon screw | 6 |
| 19 | 11172907 (4881323) |
Air filter | 1 |
| 20 | 4942824 |
Plug | 1 |
| 21 | 943706 |
Rubber hose | REQ |
| 22 | 943470 |
Hose clamp | 6 |
| 23 | 941799 |
Hose | REQ |
| 24 | 943476 |
Hose clamp | 2 |
| 25 | 479953 (7180283) |
Nipple | 1 |
| 26 | 947502 |
Nipple | 2 |
| 27 | 4854955 |
Nipple | 1 |
| 28 | 943475 |
Hose clamp | 1 |
| 29 | 4965576 |
Plug | 1 |
| 30 | 1161277 |
Sealant | REQ |
| 31 | 955984 |
O-ring | 1 |
| 32 | 4965583 |
T-pipe | 1 |
| 33 | 943706 |
Rubber hose | REQ |
| 34 | 943706 |
Rubber hose | REQ |
| 35 | 13949016 |
Gasket | 1 |
| 36 | 976928 |
Gasket | 1 |
