A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

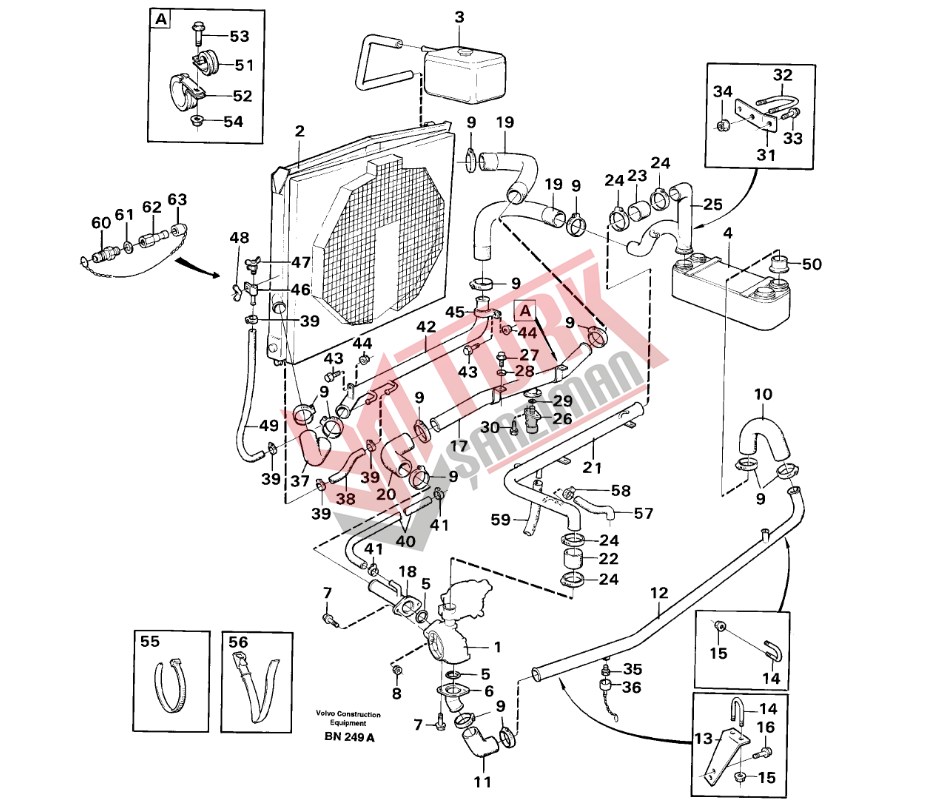

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Water pump | 1 |
| 2 | |
Radiator | 1 |
| 3 | |
Expansion tank | 1 |
| 4 | |
Oil cooler | 1 |
| 5 | 977015 (925092) |
O-ring | 2 |
| 6 | 4965192 |
Coolant pipe | 1 |
| 7 | 13946173 |
Screw | 3 |
| 8 | 955782 |
Hexagon nut | 1 |
| 9 | 943479 |
Hose clamp | 12 |
| 10 | 4773770 |
Hose | 1 |
| 11 | 4773776 |
Hose | 1 |
| 12 | 11056399 |
Tube | 1 |
| 13 | |
Bracket | 1 |
| 14 | 944026 (944027) |
Clamp | 2 |
| 15 | 13945408 (948645) |
Nut | 6 |
| 16 | 13945444 |
Screw | 5 |
| 17 | 11056333 |
Tube | 1 |
| 18 | 11056343 |
Tube | 1 |
| 19 | 4821434 |
Radiator hose | 2 |
| 20 | 4773776 |
Hose | 1 |
| 21 | 11063432 (11056336) |
Tube | 1 |
| 22 | 949478 |
Hose | REQ |
| 23 | 949478 |
Hose | REQ |
| 24 | 943478 |
Hose clamp | 4 |
| 25 | 11050432 (11056685) |
Distributor | 1 |
| 26 | 11049702 |
Valve | 1 |
| 27 | 13965182 |
Screw | 2 |
| 28 | 13960141 (13960141) |
Washer | 2 |
| 29 | 13960171 |
O-ring | 1 |
| 30 | 963683 |
Hex. socket screw | 2 |
| 31 | 11056549 |
Stay | 1 |
| 32 | 11050965 (4940469) |
Brace | 1 |
| 33 | 946671 |
Flange screw | 1 |
| 34 | 13945408 (948645) |
Nut | 2 |
| 35 | 13946121 |
Nipple | 1 |
| 36 | 11147580 (4786581) |
Dust cover | 1 |
| 37 | 4737586 |
Radiator hose | 1 |
| 38 | 943367 |
Hose | REQ |
| 39 | 943470 |
Hose clamp | 4 |
| 40 | 943368 |
Hose | REQ |
| 41 | 13943472 (943472) |
Hose clamp | 2 |
| 42 | 4737510 |
Tube | 1 |
| 43 | 13946934 |
Screw | 2 |
| 44 | 13949278 |
Flange lock nut | 2 |
| 45 | 13947456 |
Clamp | 1 |
| 46 | 4737477 |
Nipple | 1 |
| 47 | 87502 |
Drain Cock | 1 |
| 48 | 191491 |
Wing nut | 1 |
| 49 | 943367 |
Hose | REQ |
| 50 | 11056388 |
Connector | 1 |
| 51 | 952634 |
Clamp | 1 |
| 52 | 13945734 |
Clamp | 1 |
| 53 | 13946544 |
Screw | 1 |
| 54 | 13949278 |
Flange lock nut | 1 |
| 55 | 4881440 |
Cable tie | 11 |
| 56 | 11104606 (4861704) |
Retaining strap | 1 |
| 57 | 943367 |
Hose | REQ |
| 58 | 943470 |
Hose clamp | 2 |
| 59 | |
Hose | REQ |
| 60 | 945567 |
Nipple | 1 |
| 61 | 948883 |
Gasket | 1 |
| 62 | 4786585 |
Insert nipple | 1 |
| 63 | 11194108 (4881340) |
Protecting sleeve | 1 |
