A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

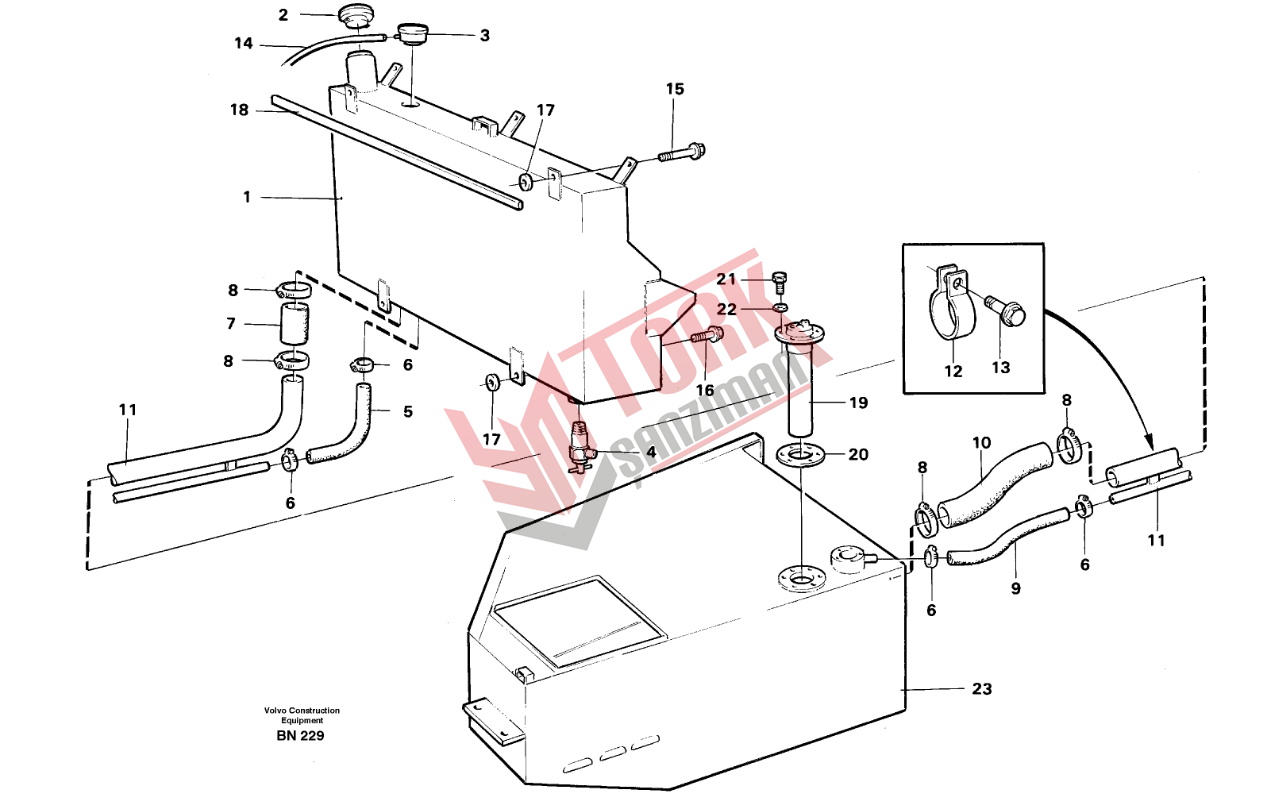

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11052485 |
Fuel tank | 1 |
| 11060893 |
Fuel tank | 1 | |
| 11114703 |
Fuel tank | 1 | |
| 11052886 |
•Filler pipe | 1 | |
| 2 | 1189577 |
Filler cap | 1 |
| 11118857 (11113886) |
Filler cap | 1 | |
| 1698164 |
•Gasket | 1 | |
| 11988188 |
•Gasket | 1 | |
| 11991396 |
•Key | 2 | |
| 3 | 4940398 |
Cover | 1 |
| 4 | 87502 |
Drain Cock | 1 |
| 5 | 4940772 |
Rubber hose | REQ |
| 6 | 13943474 |
Hose clamp | 4 |
| 7 | 4940771 |
Rubber hose | REQ |
| 8 | 943479 |
Hose clamp | 4 |
| 9 | 4940772 |
Rubber hose | REQ |
| 10 | 4940771 |
Rubber hose | REQ |
| 11 | 4940768 |
Fuel pipe | 1 |
| 12 | 941788 |
Clamp | 2 |
| 13 | 13947760 |
Screw | 2 |
| 14 | 192034 |
Rubber hose | REQ |
| 15 | 13947790 |
Screw | 2 |
| 16 | 946472 |
Flange screw | 2 |
| 17 | 13948093 |
Washer | 4 |
| 18 | 4864288 |
Sealing strip | 1 |
| 19 | 4740537 |
Tank unit | 1 |
| 20 | 4708245 |
•Gasket | 1 |
| 21 | 13955271 |
Screw | 6 |
| 22 | 955892 |
Plain washer | 6 |
| 23 | 11052603 |
Overrider | 1 |
