A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

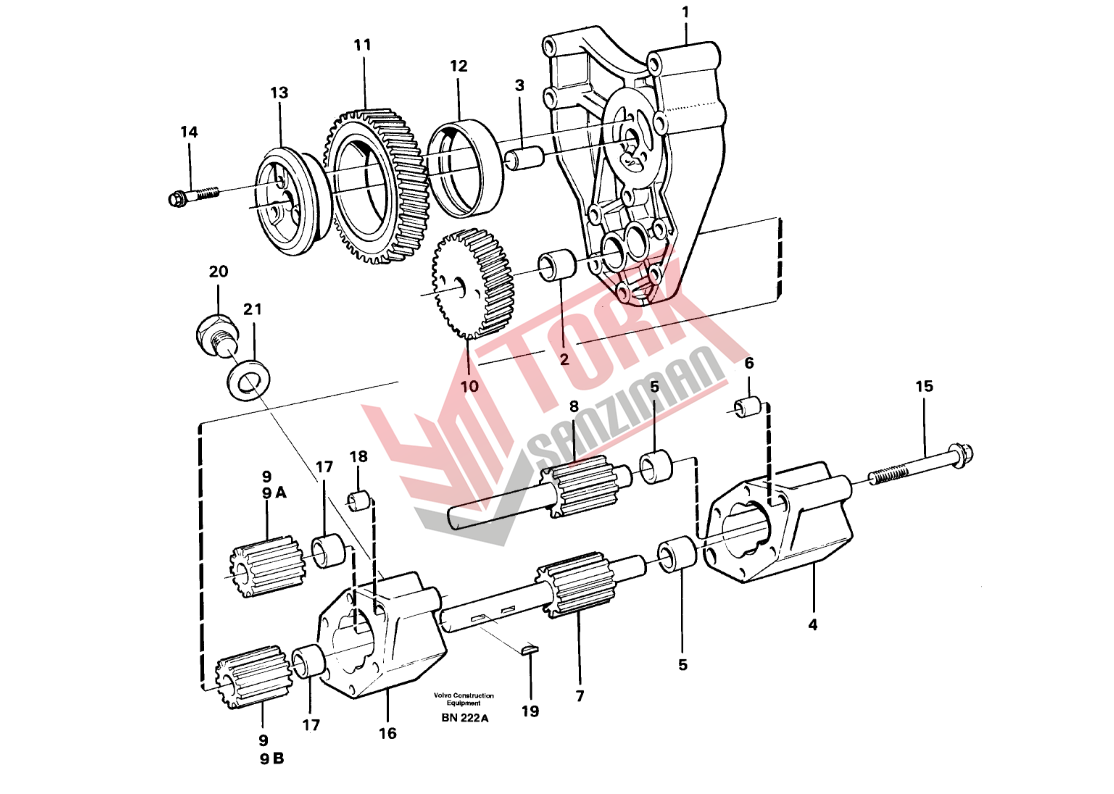

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11030633 |
Oil pump | 1 | |
| 11032844 |
Oil pump | ||
| 1 | 471571 |
•Bracket | 1 |
| 2 | 470347 |
••Bushing | 2 |
| 3 | 191171 (7191171) |
••Pin | 1 |
| 4 | |
•Oil pump housing | 1 |
| |
•Oil pump housing | ||
| 5 | 470347 |
••Bushing | 2 |
| 6 | 401146 (7401146) |
••Guide sleeve | 2 |
| 7 | |
•Shaft | 1 |
| 4778319 |
•Shaft | ||
| 8 | |
•Shaft | 1 |
| 4778325 |
•Shaft | ||
| 9 | |
•Gear | 2 |
| 9A | 4778435 |
•Gear | |
| 9B | 470353 |
•Pump rotor | |
| 10 | 471941 |
•Drive Gear | 1 |
| 11 | 471942 |
•Drive Gear | 1 |
| 12 | |
••Bushing | 1 |
| 13 | 420048 |
•Bearing sleeve | 1 |
| 14 | 471586 |
•Screw | 1 |
| 15 | 13955311 |
•Screw | 2 |
| 967825 |
•Hexagon screw | ||
| 16 | |
•Oil pump housing | 1 |
| |
•Oil pump housing | ||
| 17 | 470347 |
••Bushing | 2 |
| 18 | 401146 (7401146) |
••Guide sleeve | 2 |
| 19 | 469730 |
•Key | 1 |
| 910115 |
•Woodruff key | ||
| 20 | 13960632 |
•Plug | 1 |
| 21 | 13947624 |
•Plane gasket | 1 |
| 11702289 |
Repair kit | 1 |
