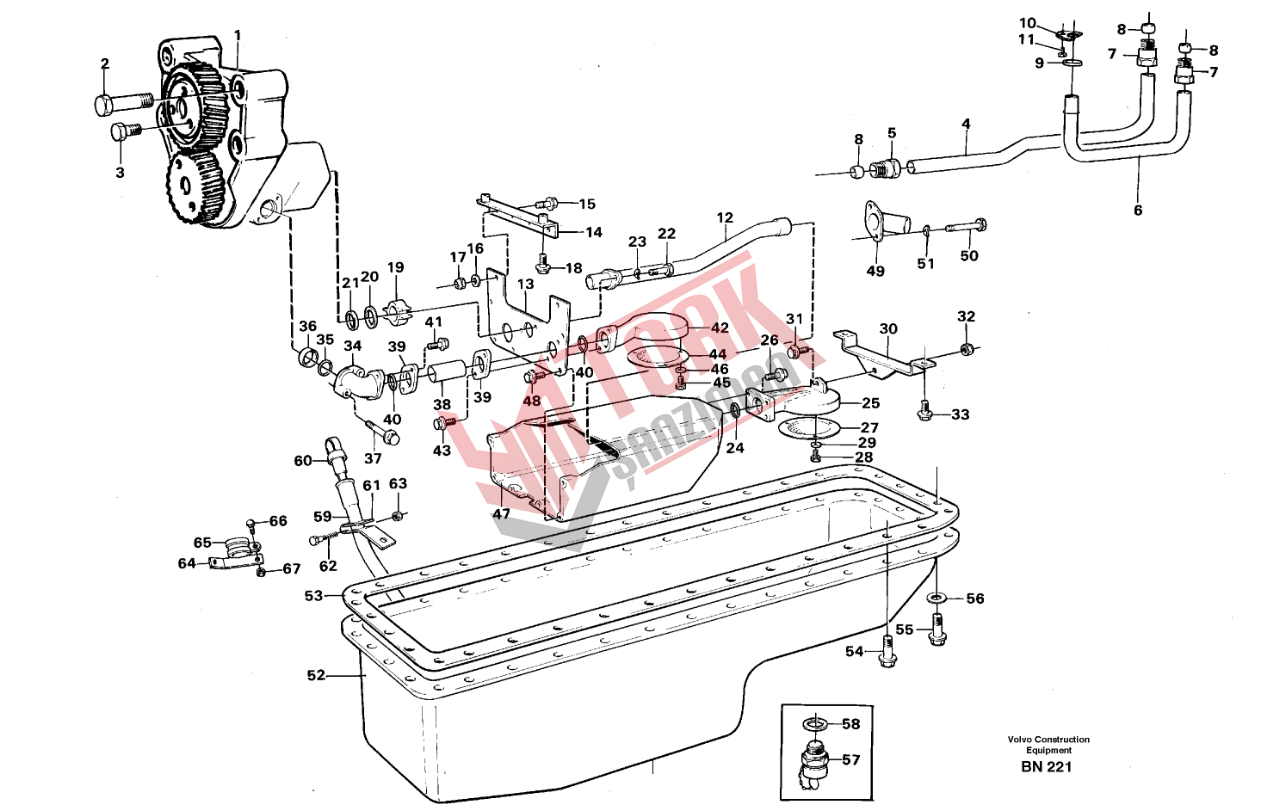

A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11030633 |
Oil pump | 1 |
| 2 | 471734 |
Screw | 2 |
| 3 | 471513 |
Screw | 4 |
| 4 | 4772186 |
Oil feed pipe | 1 |
| 11032847 |
Oil feed pipe | 1 | |
| 5 | 471595 |
Connector | 1 |
| 6 | 4772187 |
Oil feed pipe | 1 |
| 7 | 471588 |
Connector | 2 |
| 8 | 980786 (956972) |
Ferrule | 3 |
| 9 | 471956 |
Sealing ring | 2 |
| 10 | 471746 |
Clamp | 1 |
| 11 | 946440 |
Flange screw | 1 |
| 12 | 11030590 |
Suction pipe | 1 |
| 11032849 |
Suction pipe | 1 | |
| 13 | 4772181 |
Baffle plate | 1 |
| 14 | 11032898 (11030588) |
Bracket | 1 |
| 15 | 946440 |
Flange screw | 2 |
| 16 | 13955894 |
Washer | 2 |
| 17 | 946036 |
Lock nut | 2 |
| 18 | 13946173 |
Screw | 2 |
| 19 | 4772185 |
Spacer | 1 |
| 11032848 |
Spacer | 1 | |
| 20 | 4778331 |
Spacer | 1 |
| 21 | 470383 |
Sealing ring | 1 |
| 22 | 968303 |
Hexagon screw | 2 |
| 23 | 13955894 (941907) |
Washer | 2 |
| 24 | 944126 |
O-ring | 1 |
| 25 | 4778037 |
Strainer housing | 1 |
| 26 | 946671 |
Flange screw | 4 |
| 27 | 4778048 |
Strainer | 1 |
| 28 | 955268 |
Hexagon screw | 3 |
| 29 | 955948 |
Toothed washer | 3 |
| 30 | 4772182 |
Bracket | 1 |
| 31 | 946671 |
Flange screw | 1 |
| 32 | 946036 |
Lock nut | 1 |
| 33 | 946440 |
Flange screw | 2 |
| 34 | 4772174 |
Connector | 1 |
| 35 | 944126 |
O-ring | 1 |
| 36 | 4778328 |
Sleeve | 1 |
| 37 | 13965216 |
Screw | 2 |
| 38 | 4772177 |
Tube | 1 |
| 11032876 |
Tube | 1 | |
| 39 | 4778330 |
Flange | 2 |
| 40 | 944126 |
O-ring | 2 |
| 41 | 13947760 |
Screw | 2 |
| 42 | 4772173 |
Strainer housing | 1 |
| 43 | 946671 |
Flange screw | 2 |
| 44 | 4778048 |
Strainer | 1 |
| 45 | 955268 |
Hexagon screw | 3 |
| 46 | 955948 |
Toothed washer | 3 |
| 47 | 4772172 |
Oil reservoir | 1 |
| 48 | 946440 |
Flange screw | 6 |
| 49 | 4778425 |
Pipe | 1 |
| 50 | 955312 |
Hexagon screw | 2 |
| 51 | 13955894 (955894) |
Washer | 2 |
| 52 | 11031681 |
Oil pan | 1 |
| 53 | 11030779 (421025) |
Gasket | 1 |
| 54 | 946440 |
Flange screw | 36 |
| 55 | 956568 |
Hex. socket screw | 4 |
| 56 | 13955894 |
Washer | 4 |
| 57 | 11054692 |
Valve | 1 |
| 58 | 949329 |
Gasket | 1 |
| 59 | 4772226 |
Pipe | 1 |
| 60 | 4772239 |
Oil dipstick | 1 |
| 61 | 4772104 |
Clamp | 1 |
| 62 | 13948356 |
Flange screw | 1 |
| 63 | 13945407 |
Nut | 1 |
| 64 | 11032627 |
Attachment | 1 |
| 65 | 941950 |
Clamp | 1 |
| 66 | 946440 |
Flange screw | 1 |
| 67 | 13945408 |
Nut | 1 |
