A25C 4x4
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

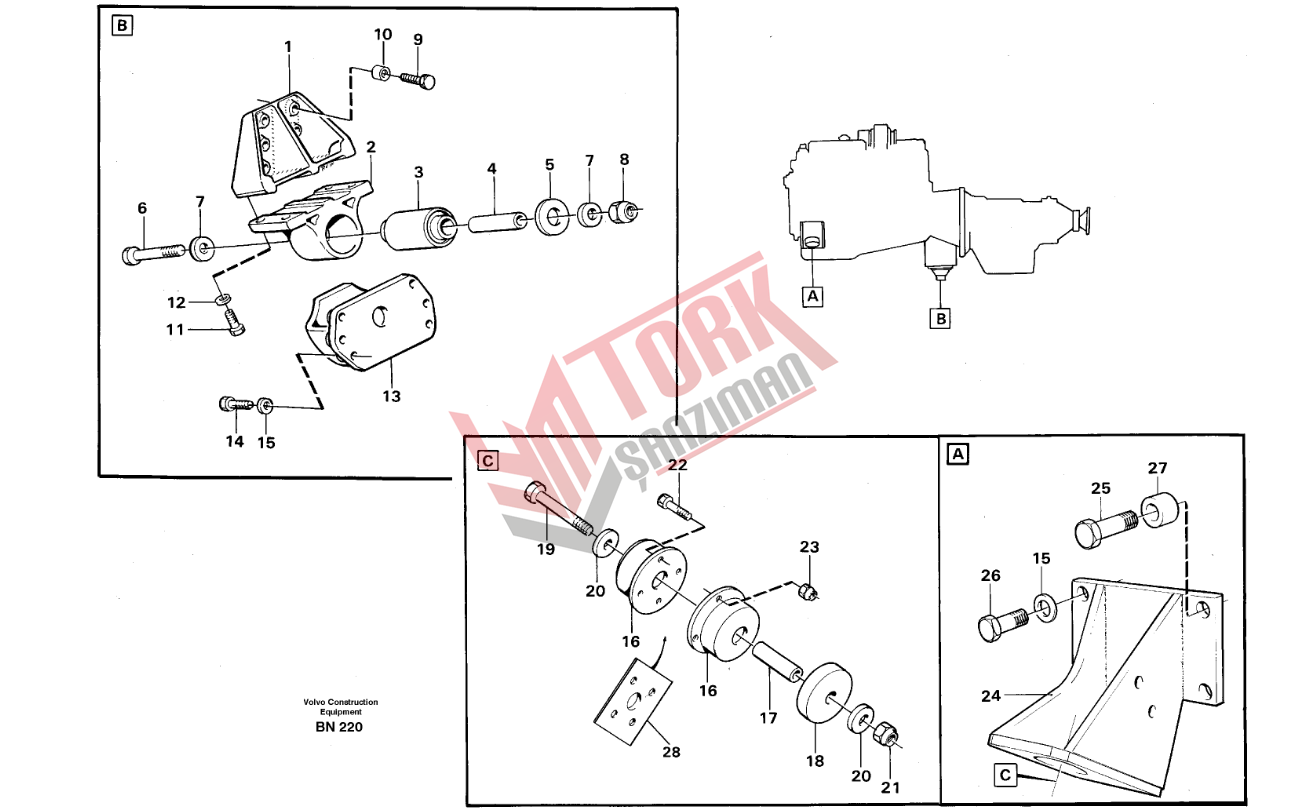

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 4823093 |
Bracket | 2 |
| 2 | 4823094 |
Bracket | 2 |
| 3 | 4737289 |
Rubber bushing | 1 |
| 4 | 4737838 |
Shaft | 2 |
| 5 | 4737260 |
Washer | 2 |
| 6 | 955380 |
Hexagon screw | 2 |
| 7 | 13955900 |
Washer | 2 |
| 8 | 13967934 |
Flange lock nut | 2 |
| 9 | 955566 |
Hexagon screw | 12 |
| 10 | 4861316 |
Spacer ring | 12 |
| 11 | 965225 (955341) |
Flange screw | 8 |
| 12 | 4737842 |
Washer | 8 |
| 13 | 4823092 |
Bracket | 2 |
| 14 | 13965226 (13955343) |
Screw | 12 |
| 15 | 971099 |
Flange lock nut | 12 |
| 16 | 1623745 |
Rubber cushion | 4 |
| 17 | 1501002 |
Spacer sleeve | 2 |
| 18 | 4737225 |
Plate | 2 |
| 19 | 13955378 |
Screw | 2 |
| 20 | 13955900 |
Washer | 2 |
| 21 | 13967934 |
Flange lock nut | 2 |
| 22 | 13945444 |
Screw | 8 |
| 23 | 13945408 (948645) |
Nut | 8 |
| 24 | 4965045 |
Bracket | 2 |
| 25 | 965195 (13955348) |
Flange screw | 7 |
| 26 | 13965226 (13955348) |
Screw | 1 |
| 27 | 4861316 |
Spacer ring | 7 |
| 28 | 4941846 |
Plate | REQ |
